Description
Make and Model: Blaupunkt Frankfurt (Type 7632)
Classic Car era: 1972 – 1981

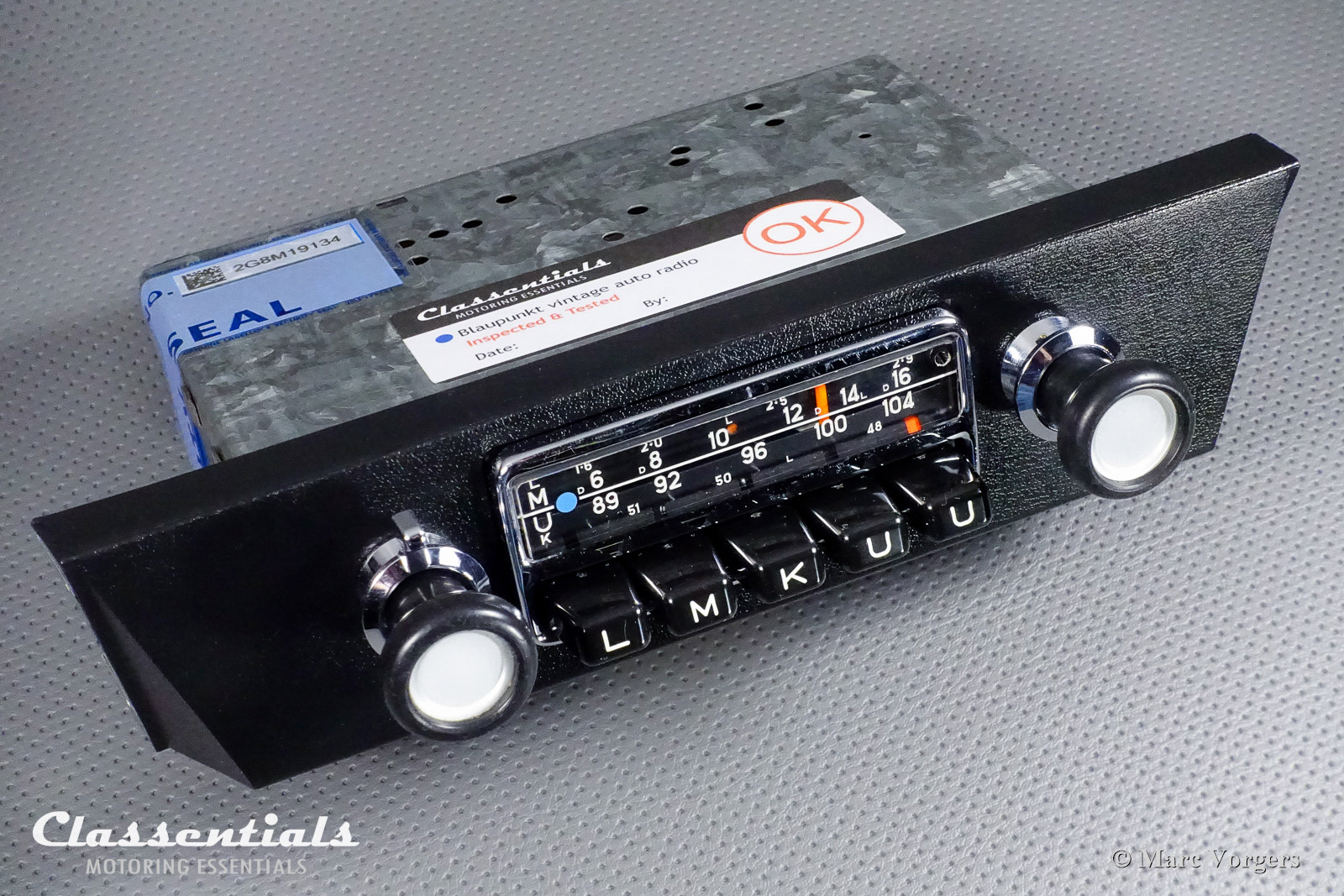

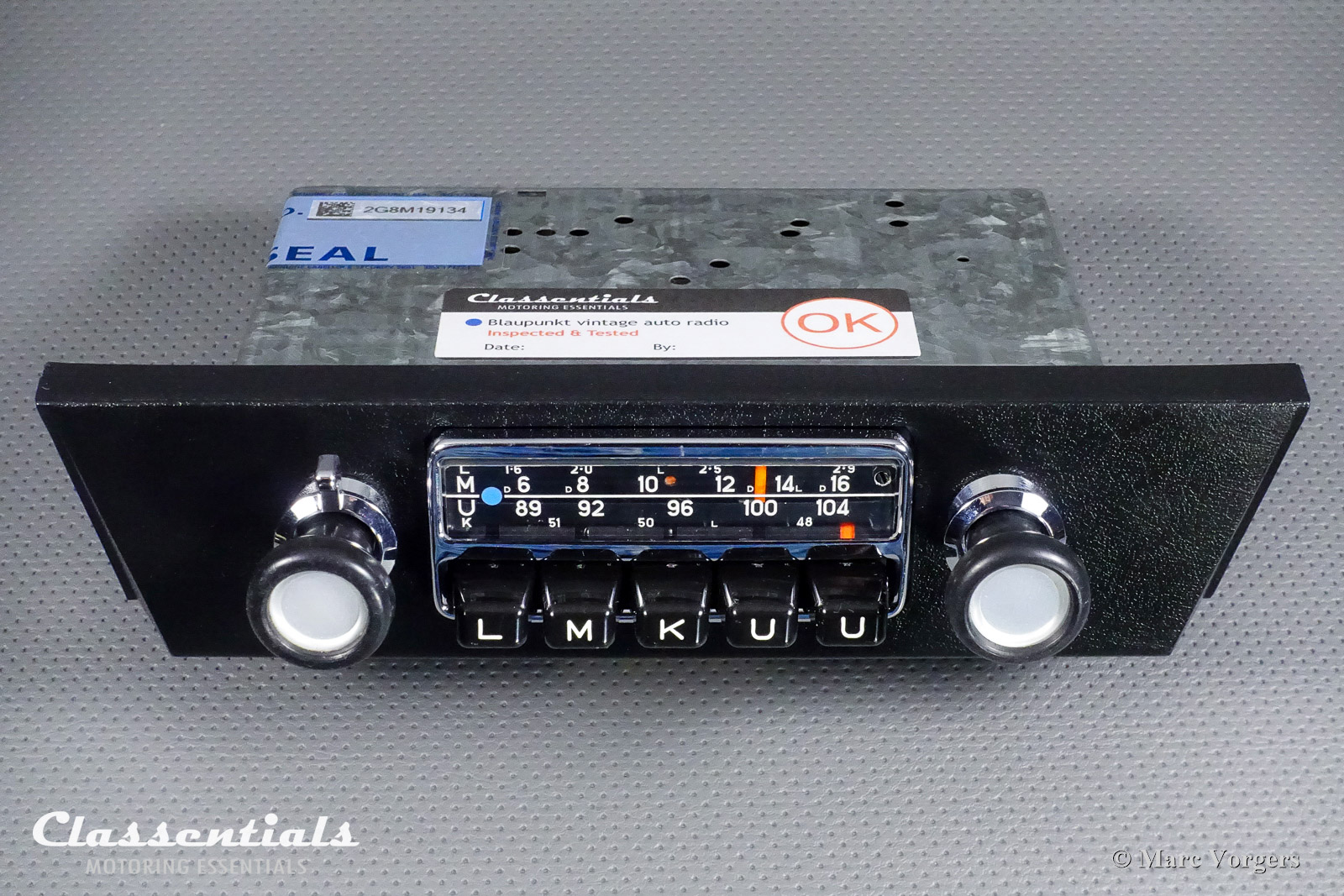

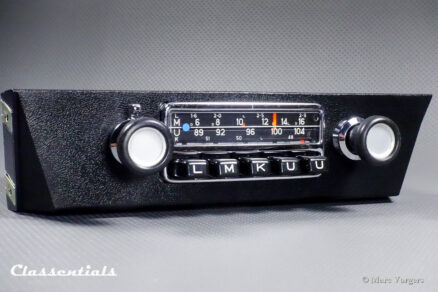

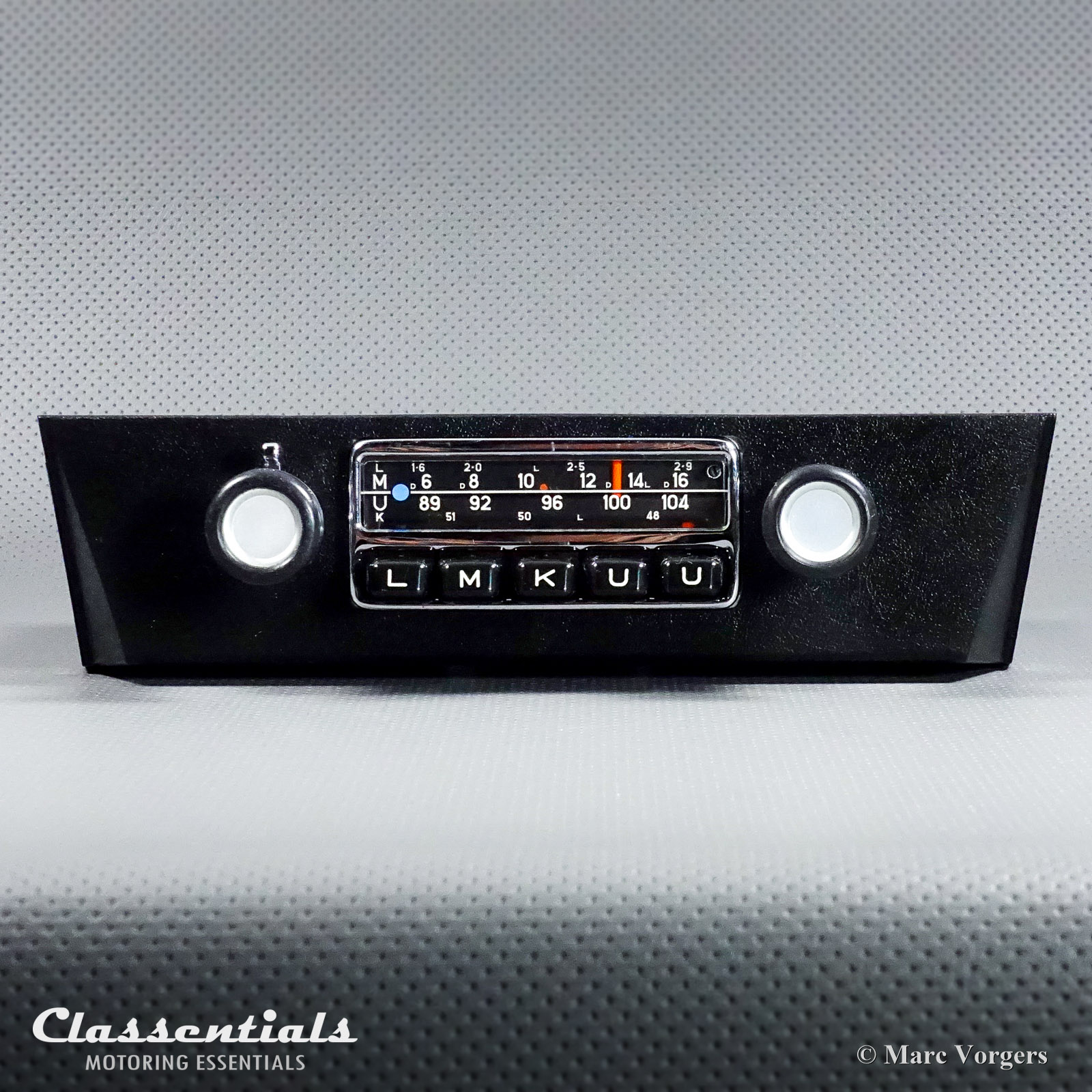

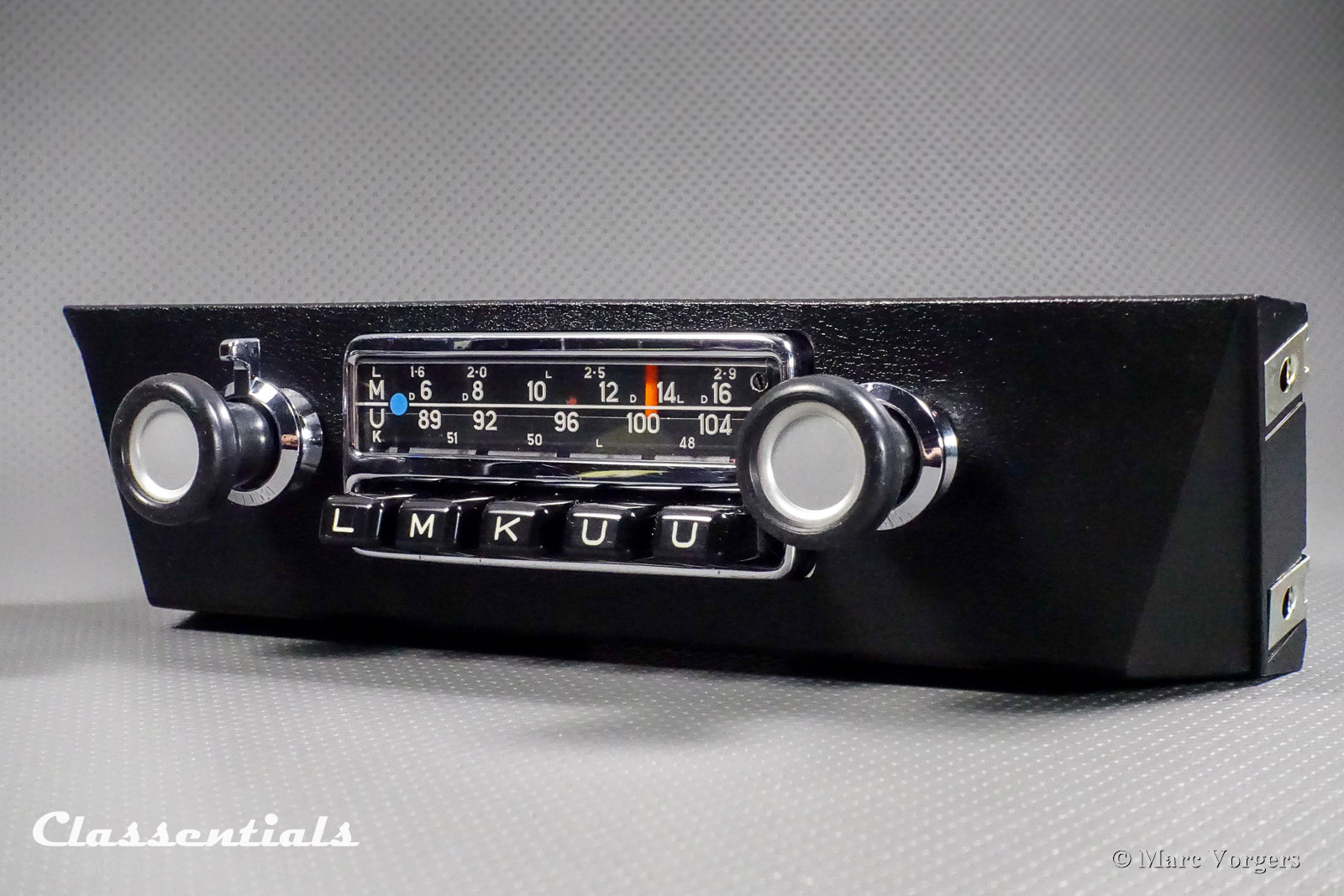

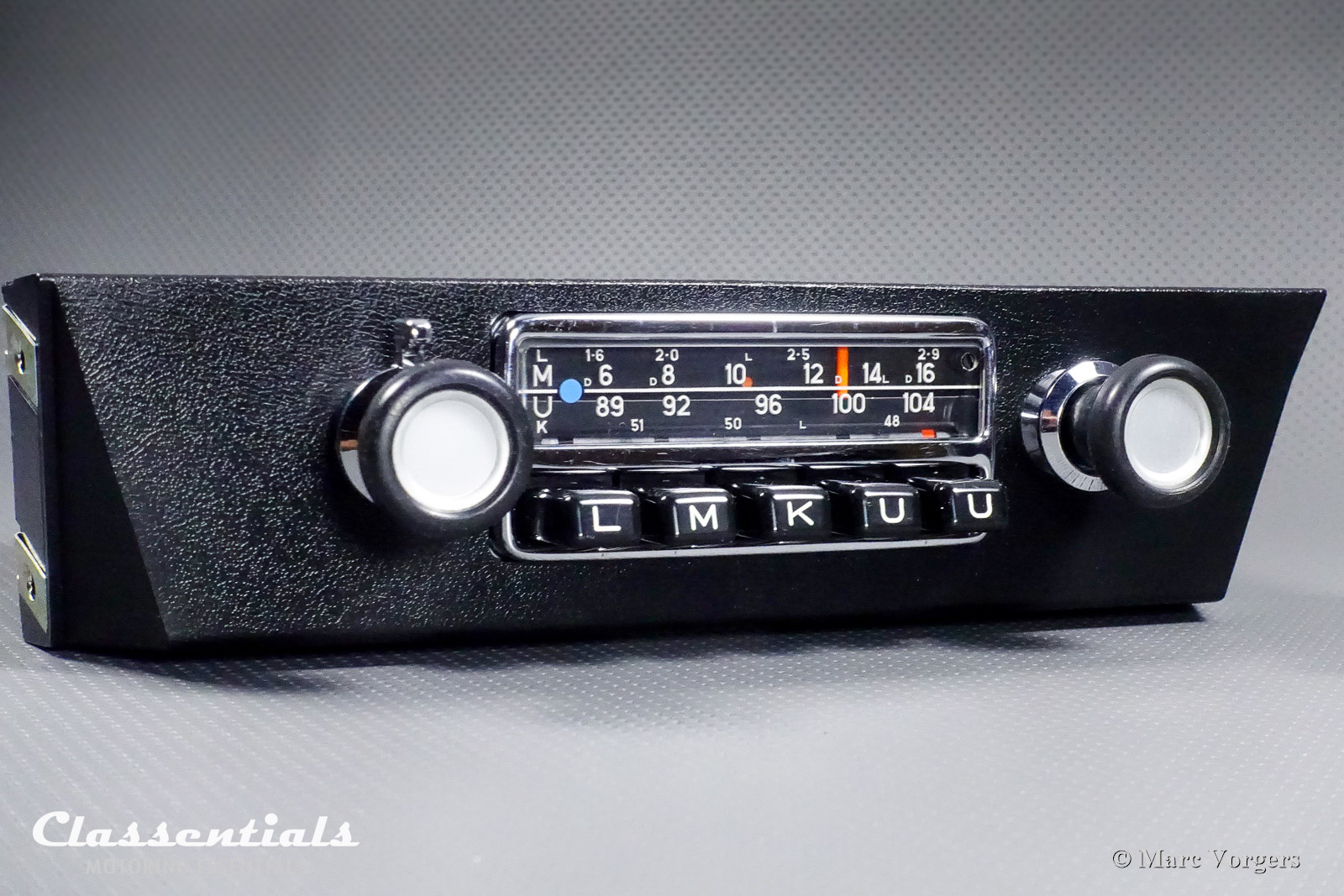

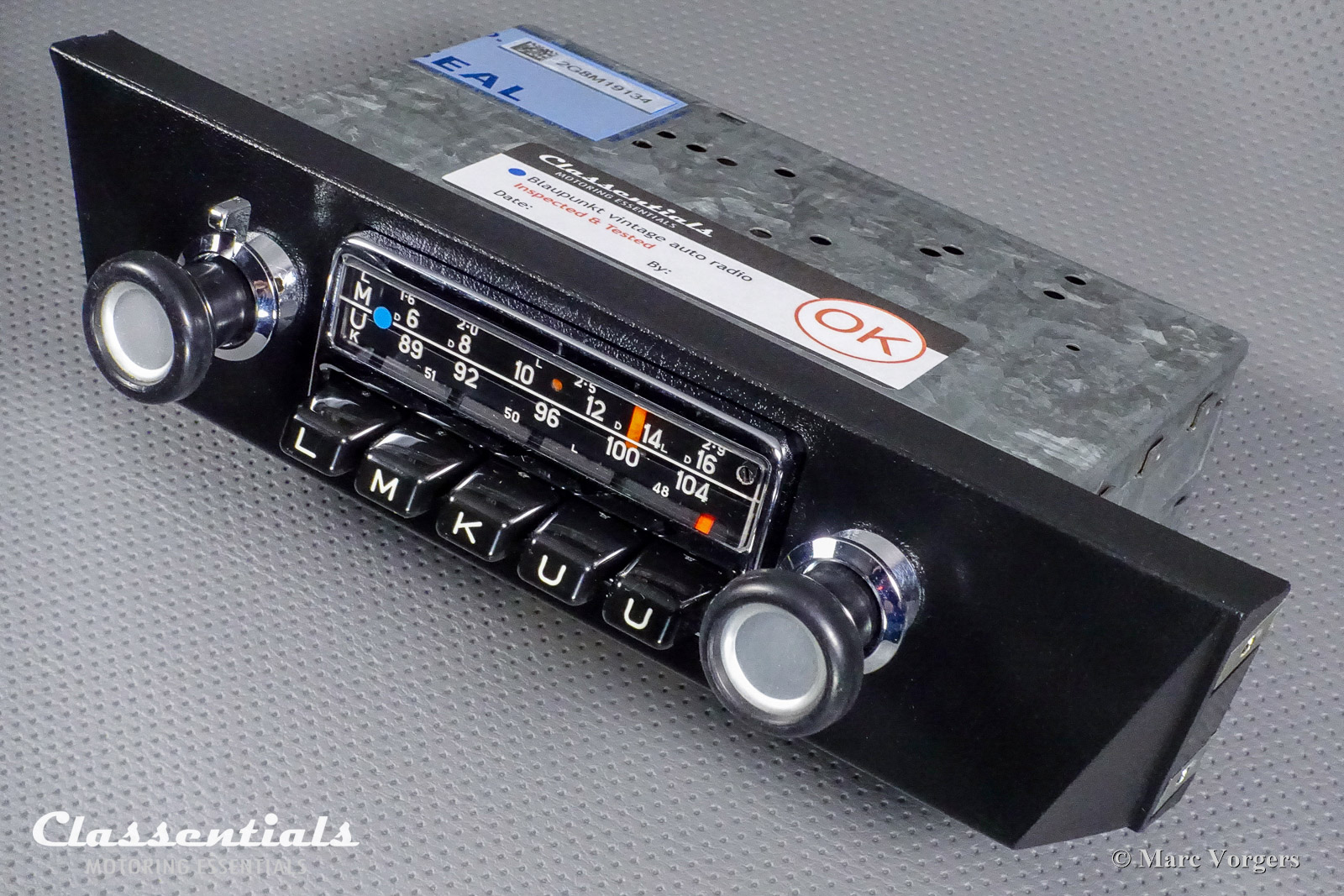

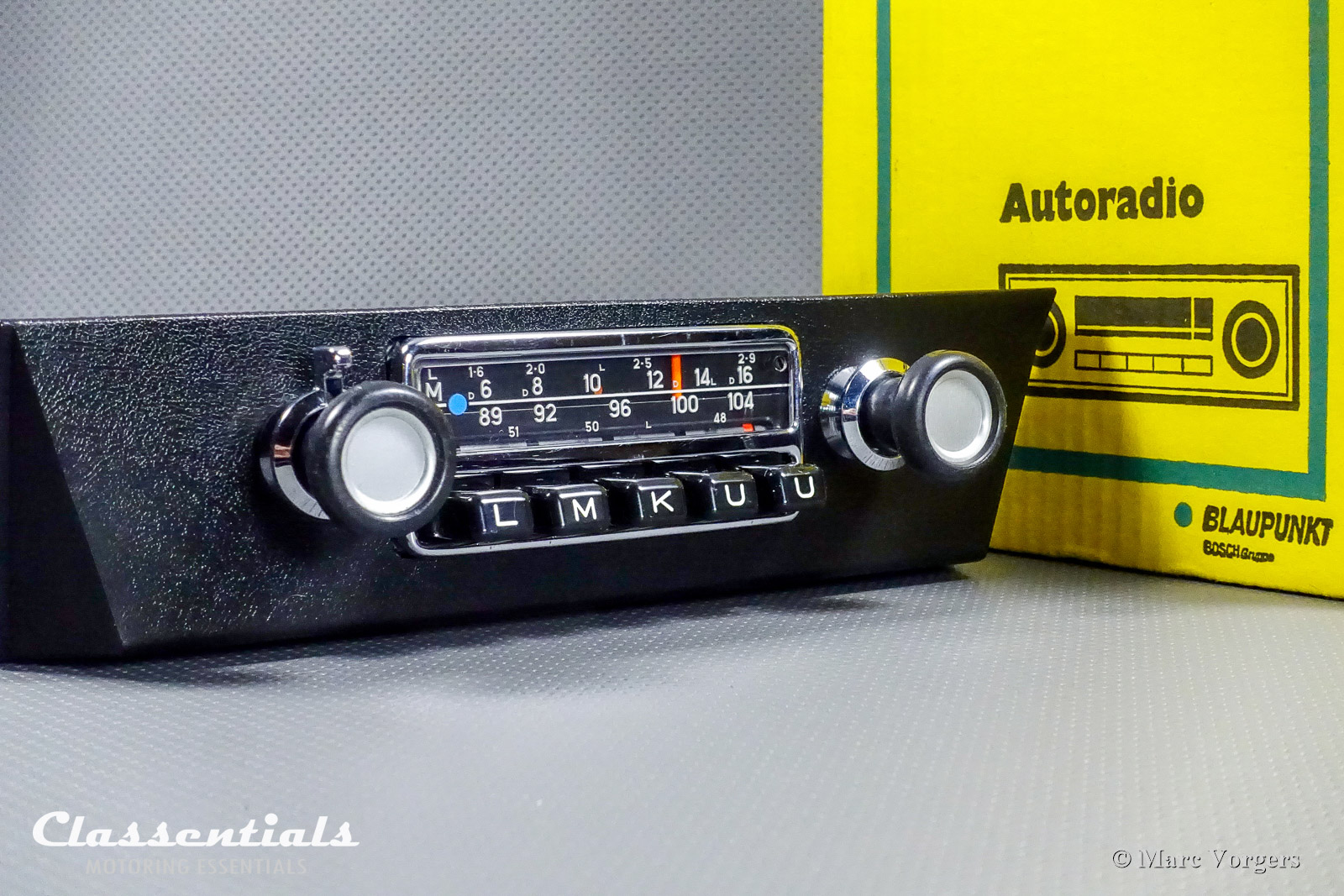

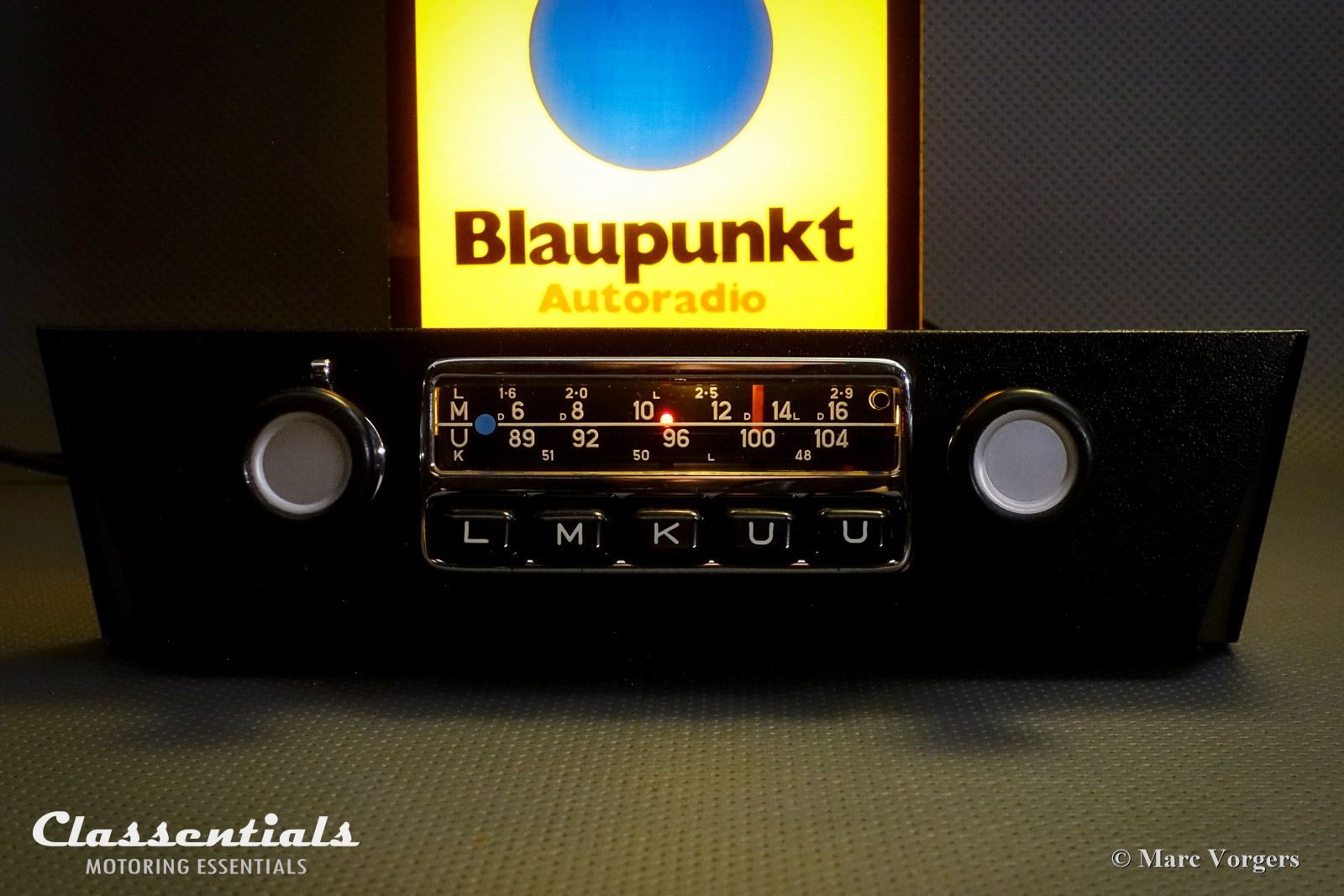

Face-plate: Original Blaupunkt/BMW E12 5-series black plastic console front (1st model 1972 -1981) with small chrome dial scale.
Knobs: 1970s original blaupunkt/BMW E12 5-series knobs.
On-board voltage: 12V, Negative earth / ground only
Output power: 5 Watt nominal / 7 Watt music
Impedance: 4 Ohm
Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier.
Wave Range: long wave (L), medium wave (M), short wave (K), UKW (U – FM)
Frequency range UKW (FM): 88MHz-104MHz
Equipment: Tone control (bass/treble), automatic/electronic antenna connection, 6-PIN DIN connection for optional external devices (in period cassette players) like the Classentials Deluxe Bluetooth module.
Design type: Transistor radio
Year of build: 1972
Dimensions unit (width x height x depth): 177 x 45 x 120 mm / 7 x 1,7 x 4,7 inch) (back to front of face-plate)
Dimensions face-plate (width x height in mm): 250 top, 238 bottom, 60 high (inches 9,8 top 9,4 bottom 2,4 high).
Weight (kg): 1.4

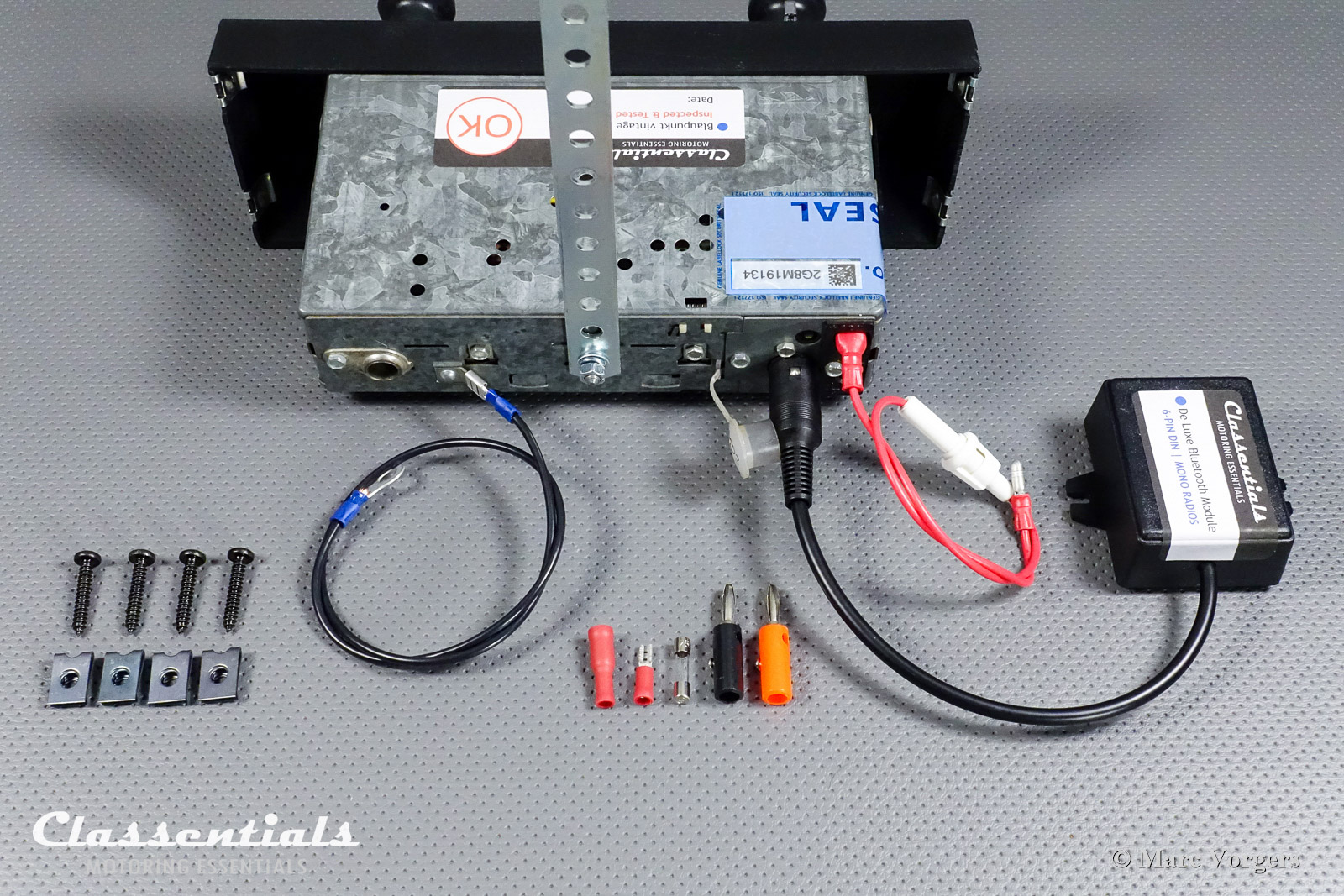

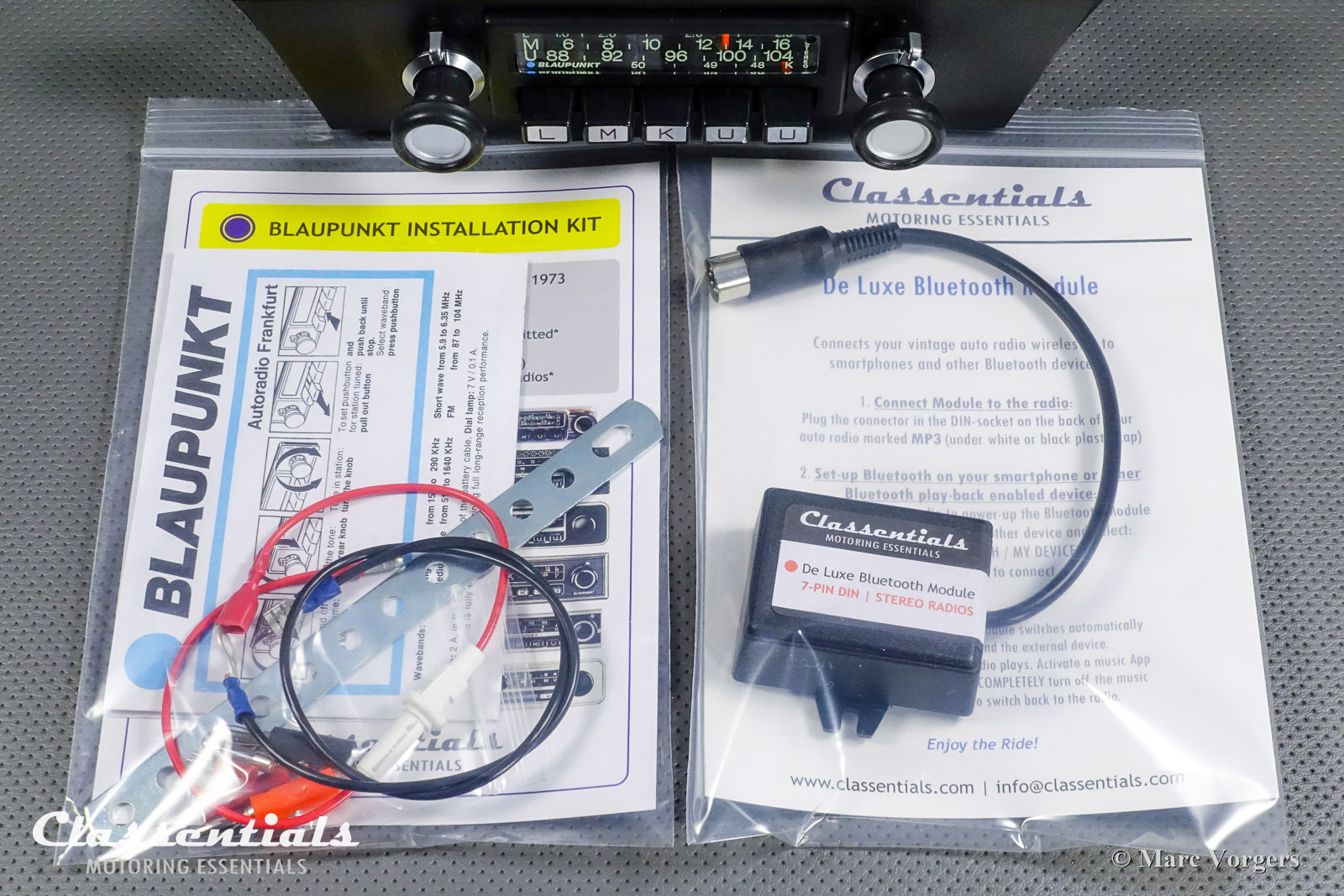

Extra in packaging: Classentials Installation Kit 1 with installation instructions, old style speaker plug, earth / ground cable and a rear mounting support (holed metal strip), see pictures.
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.

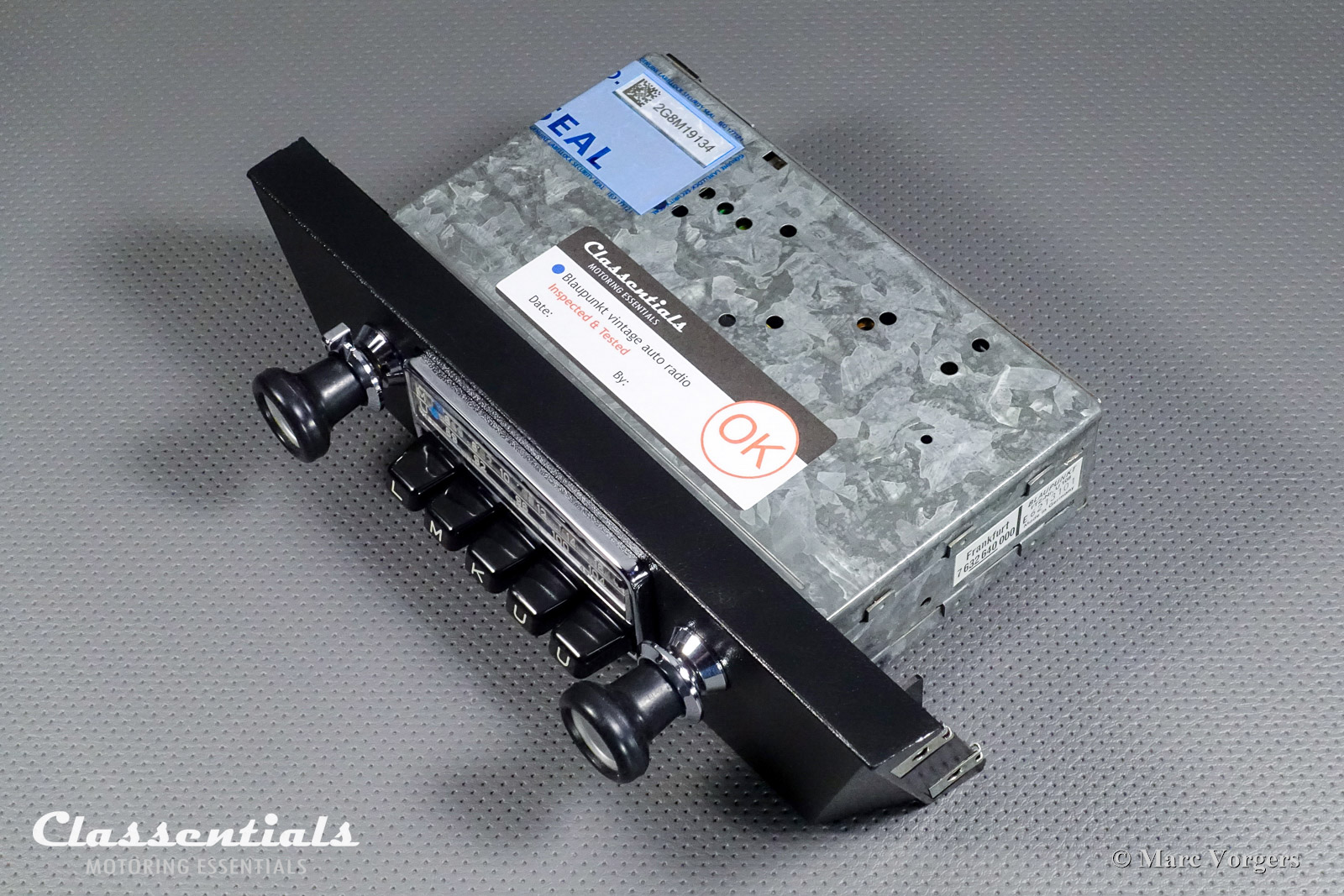

*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a reliable Blaupunkt transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
