Description

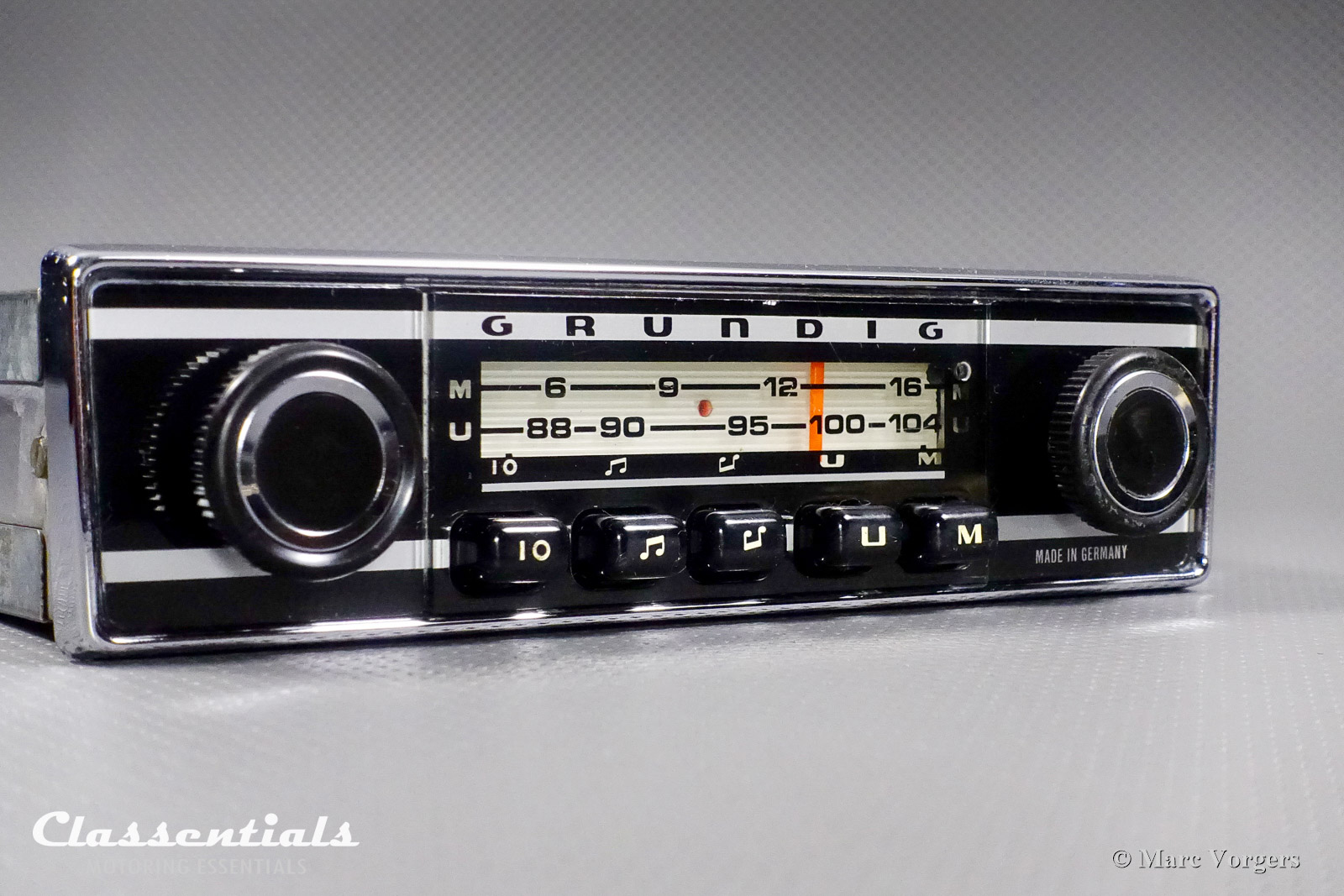

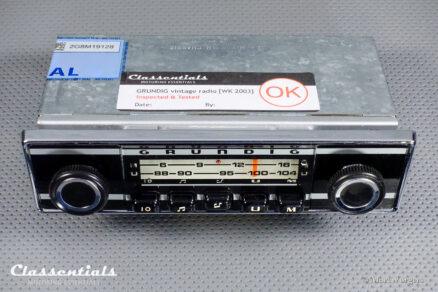

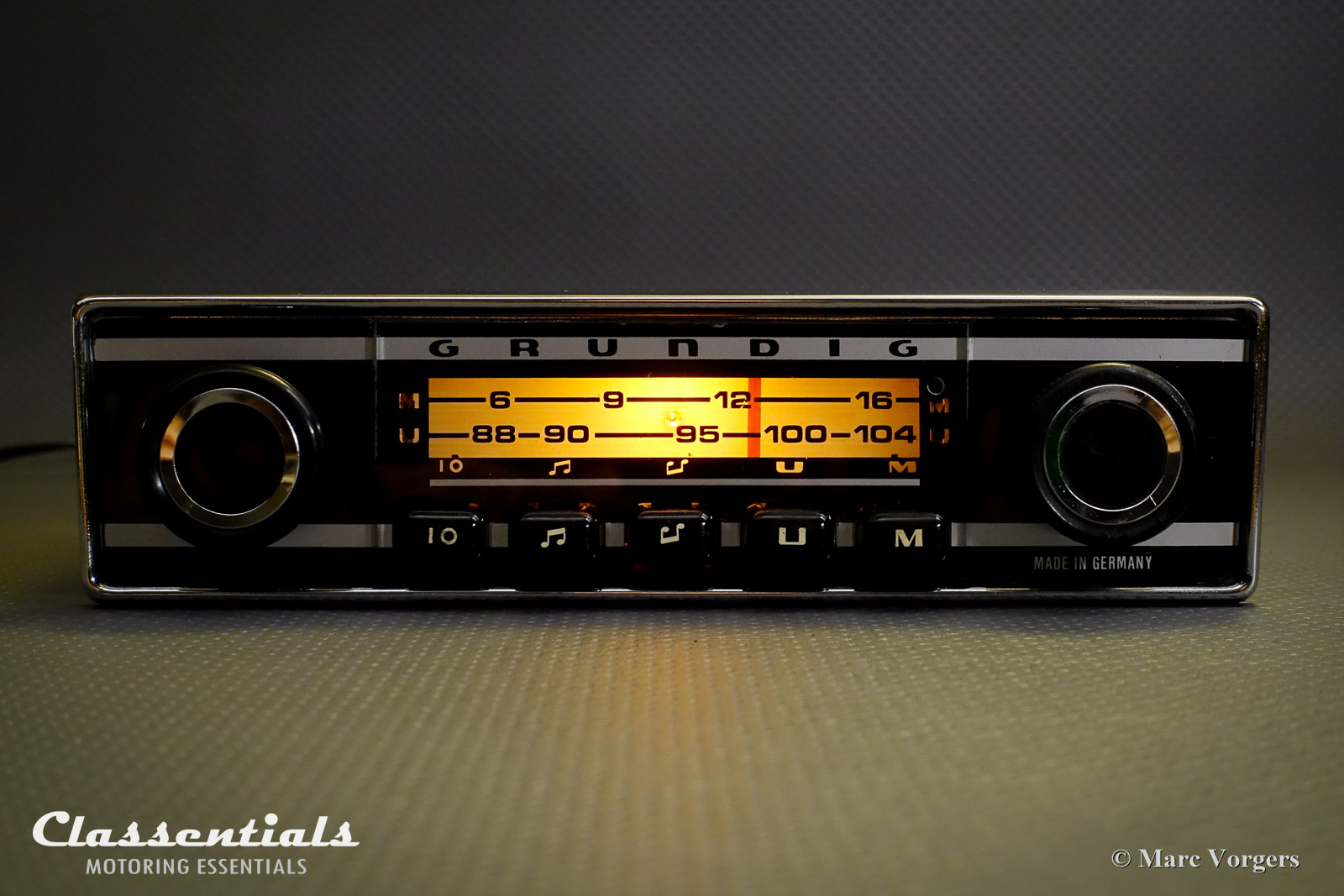

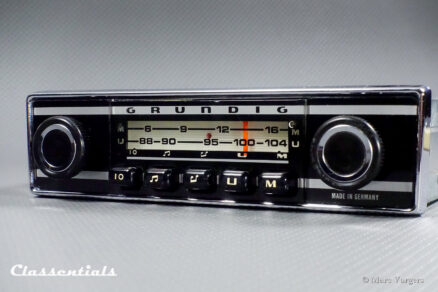

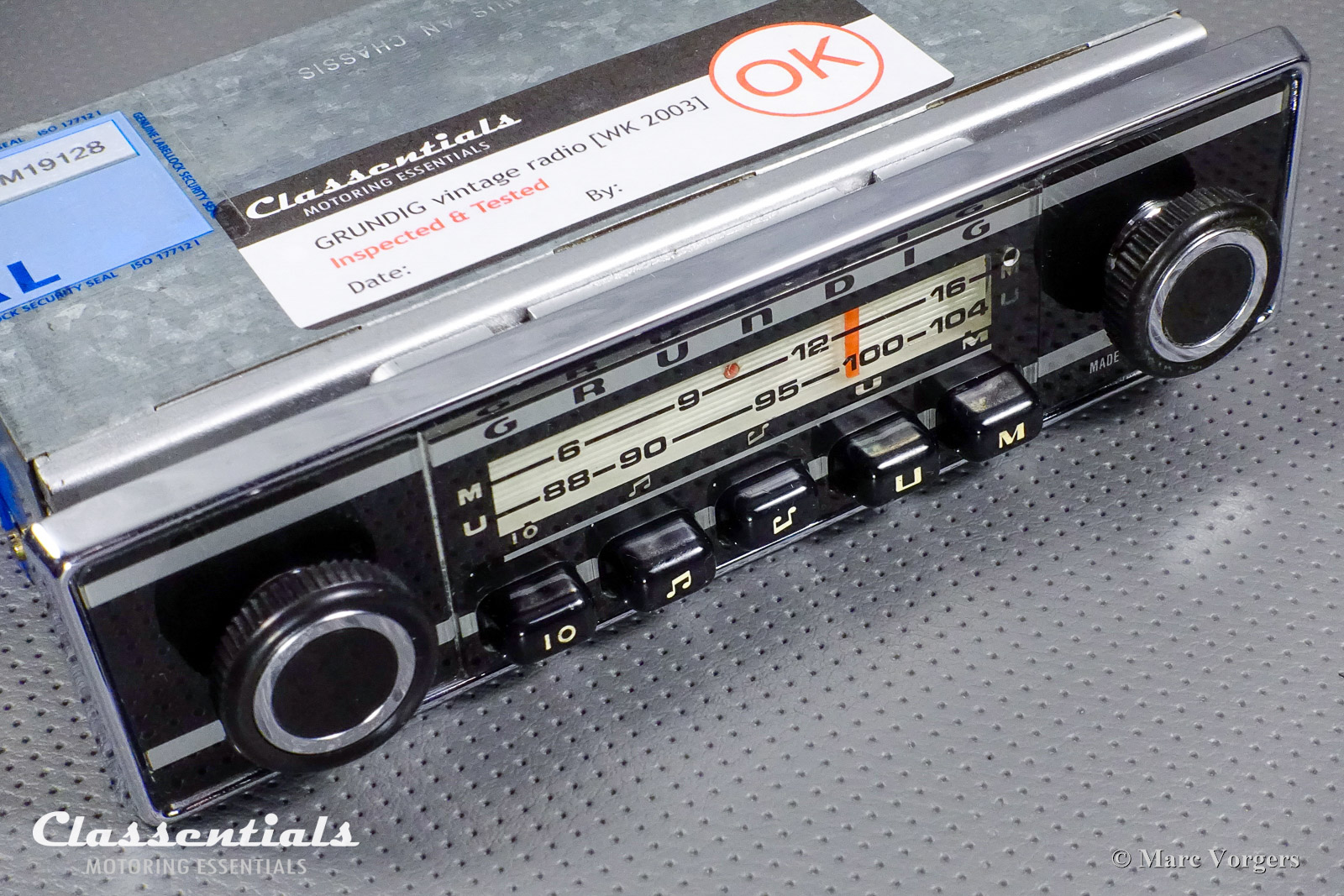

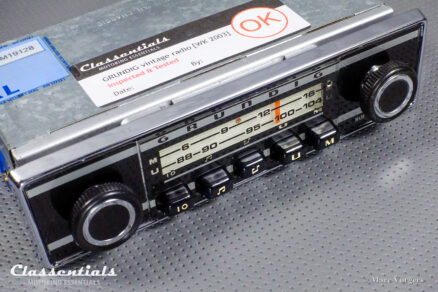

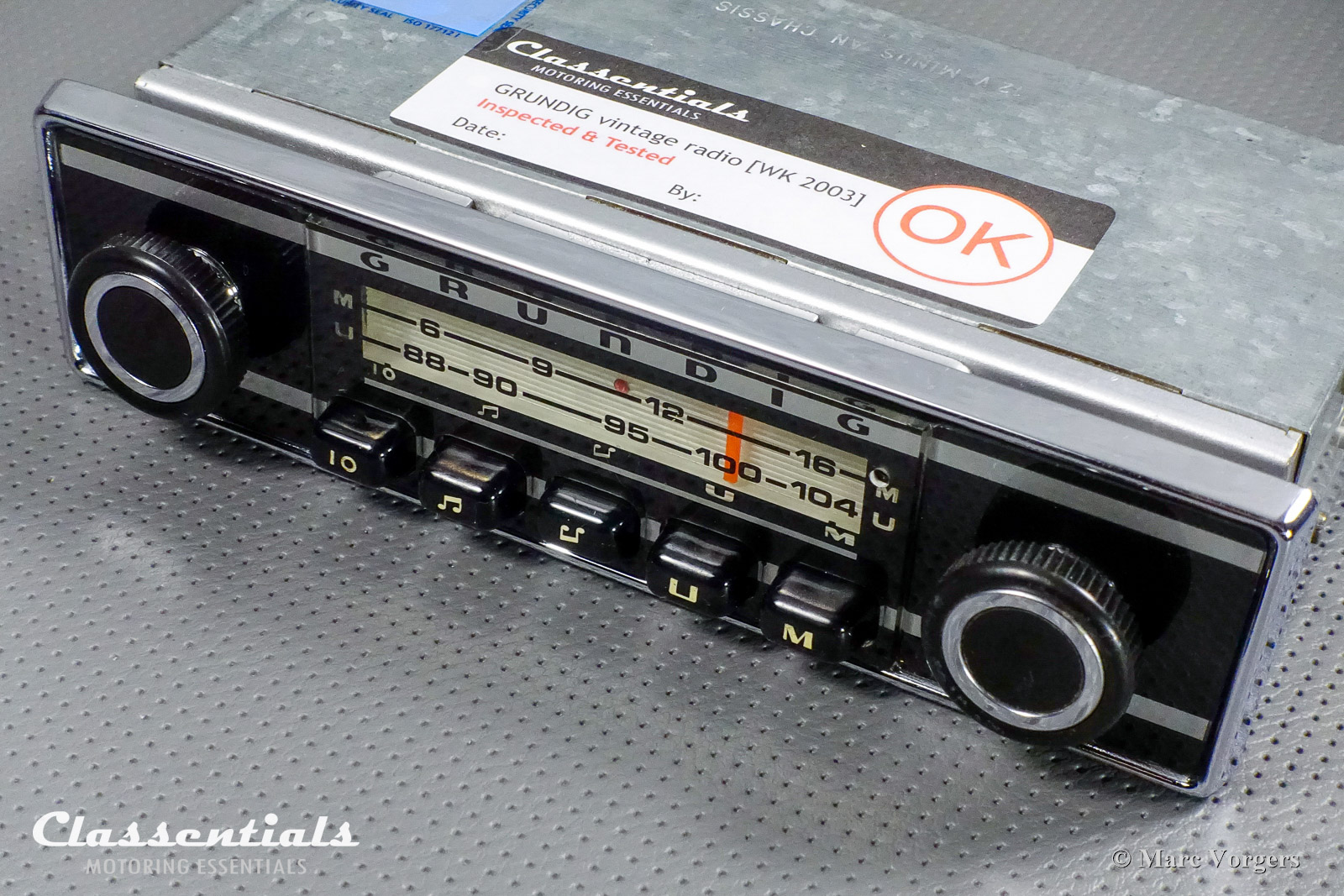

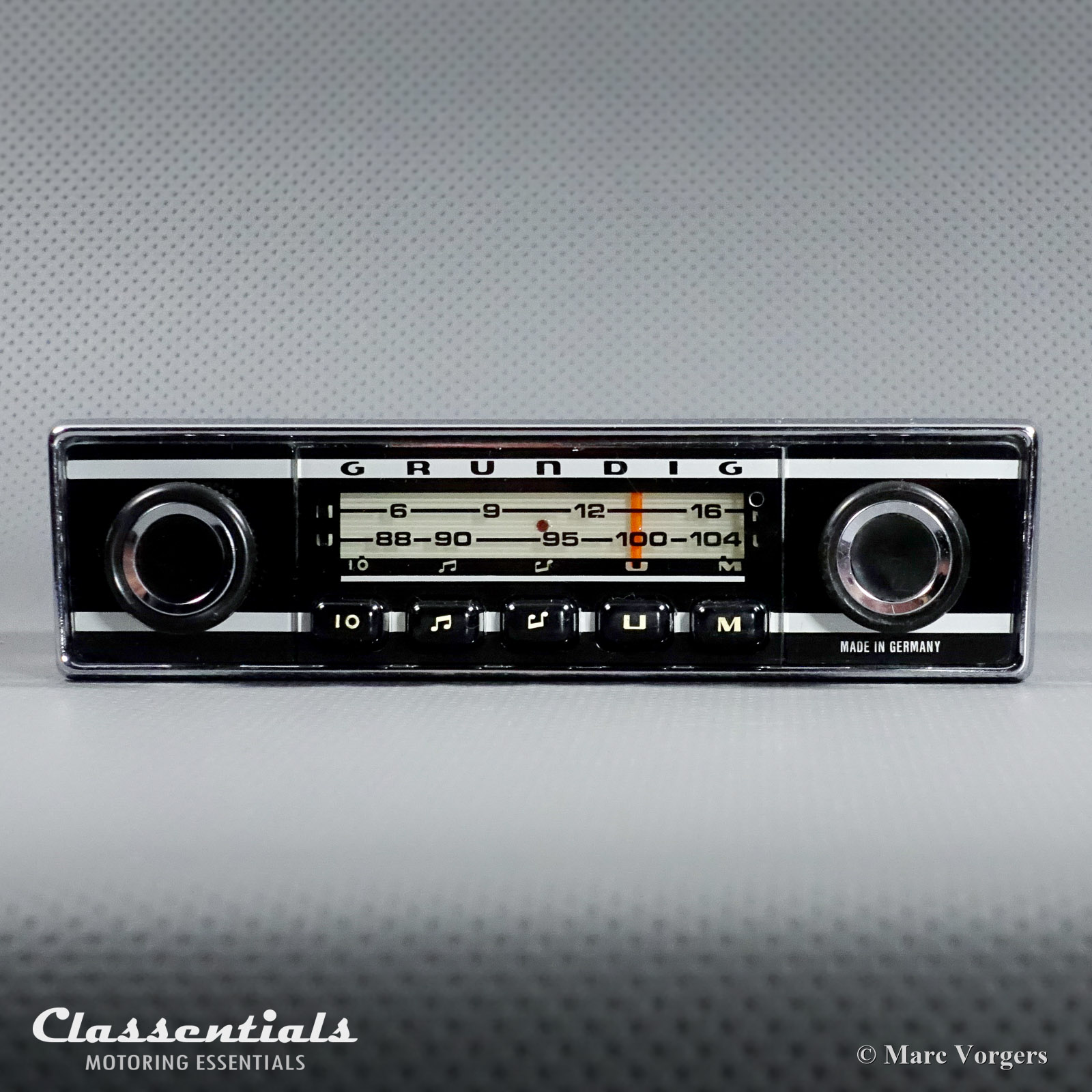

Model: Grundig WK 2003
- Classic Car era: 1968 – 1975
- Face-plate: Universal Grundig
- On-board voltage: 12V, Negative earth / ground
- Output power: 5 Watt
- Impedance: 4 Ohm
- Rendition: Mono, 1 (4 Ohm) speaker. NOTE: If you want to connect two speakers then you have to use two 8 Ohm speakers connected parallel + to + and – to -, this makes 4 Ohm. This is important otherwise you will damage the internal amplifier
- Wave Range: (M) Medium wave, Ultra short wave UKW (U / FM)
- Frequency range UKW (FM): 88MHz-104MHz

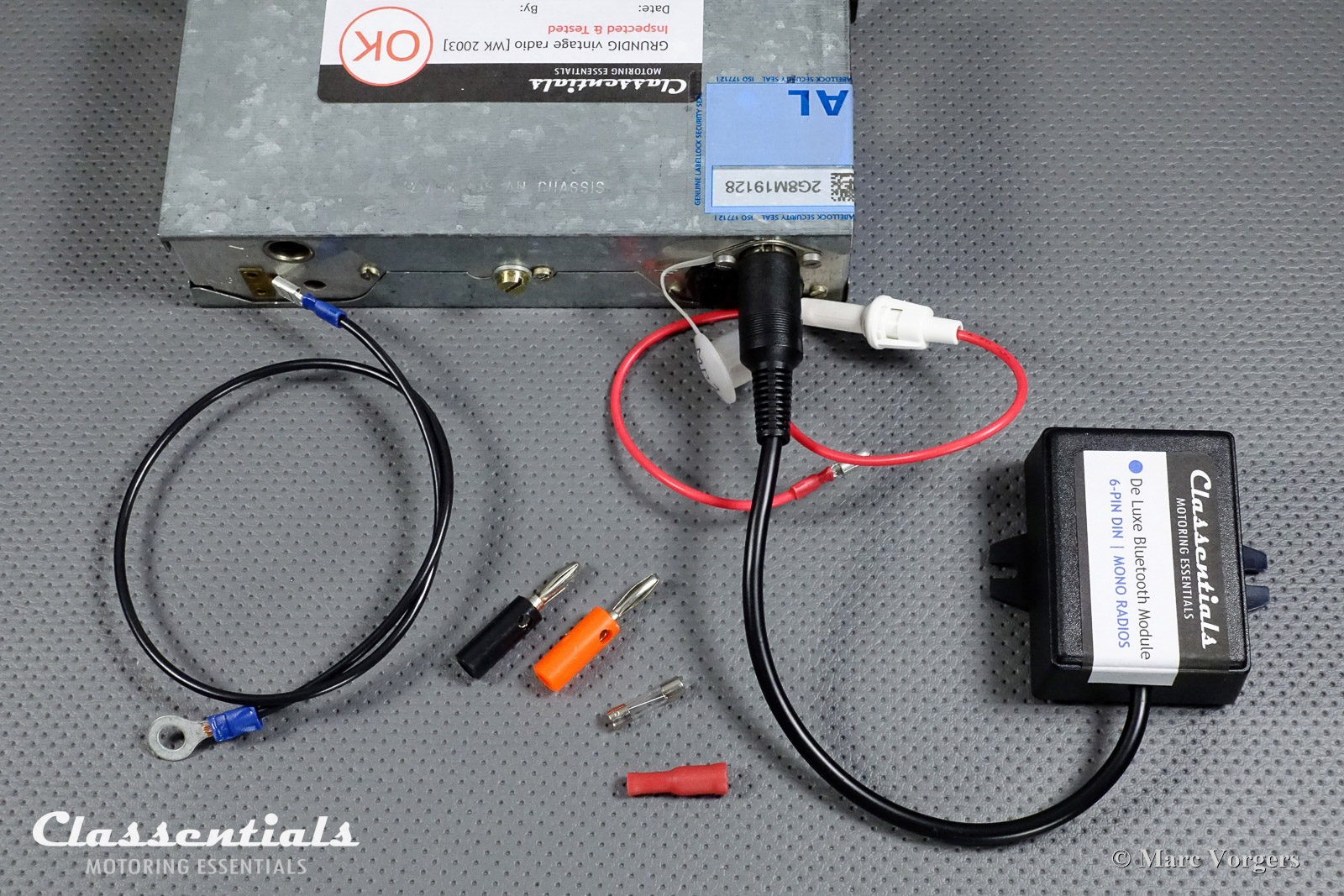

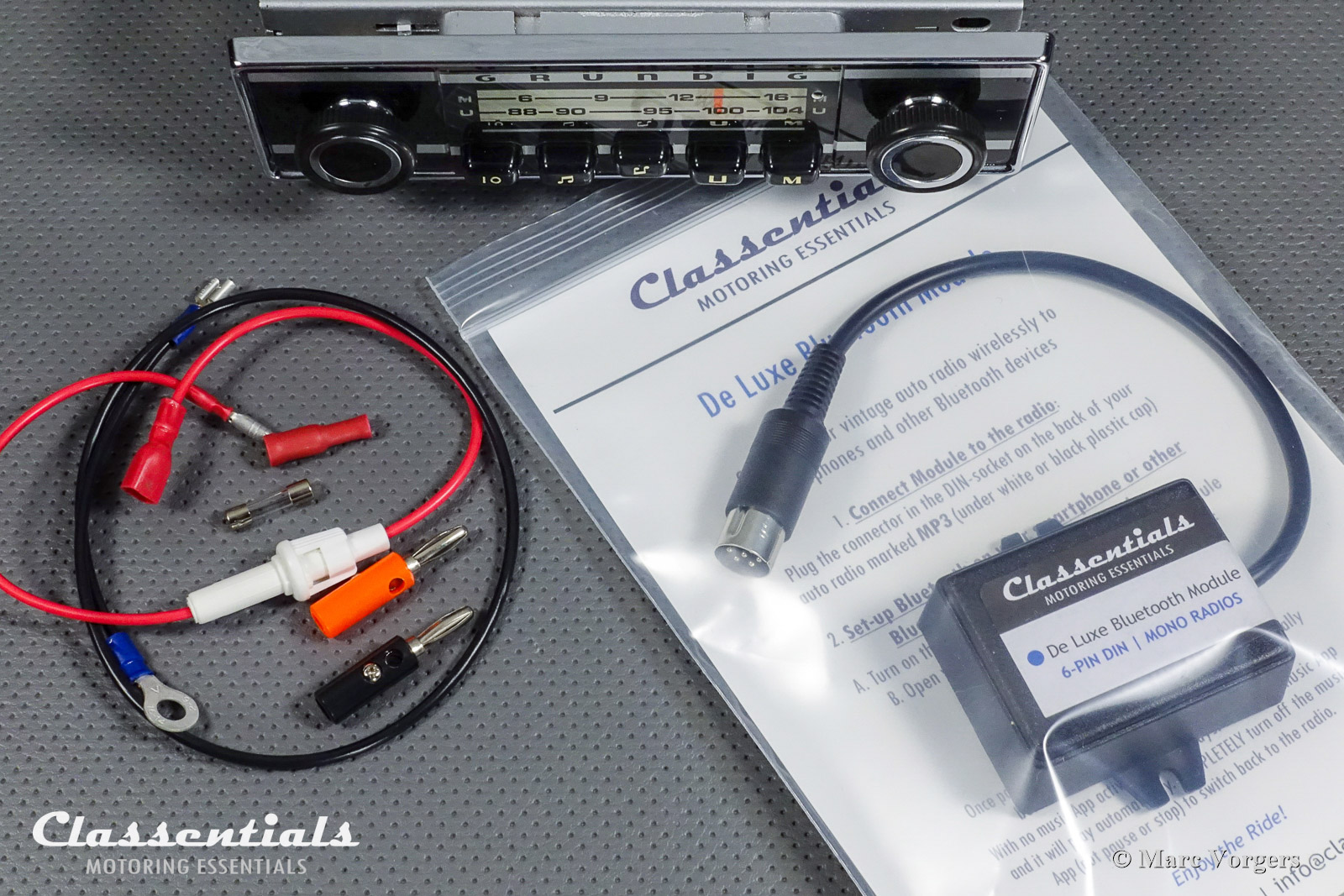

- Equipment: On/off push button, 2 tone buttons (bass/treble), 6-PIN DIN connection to connect external play-back devices like a Classentials De Luxe Bluetooth Module
- Design type: Transistor radio
- Years of production (approx.): 1968-74
- Dimensions unit (width x height x depth): 175 x 42 x 100* mm (6,8 x 1,7 x 3,9* inch) *measured from back of faceplate.

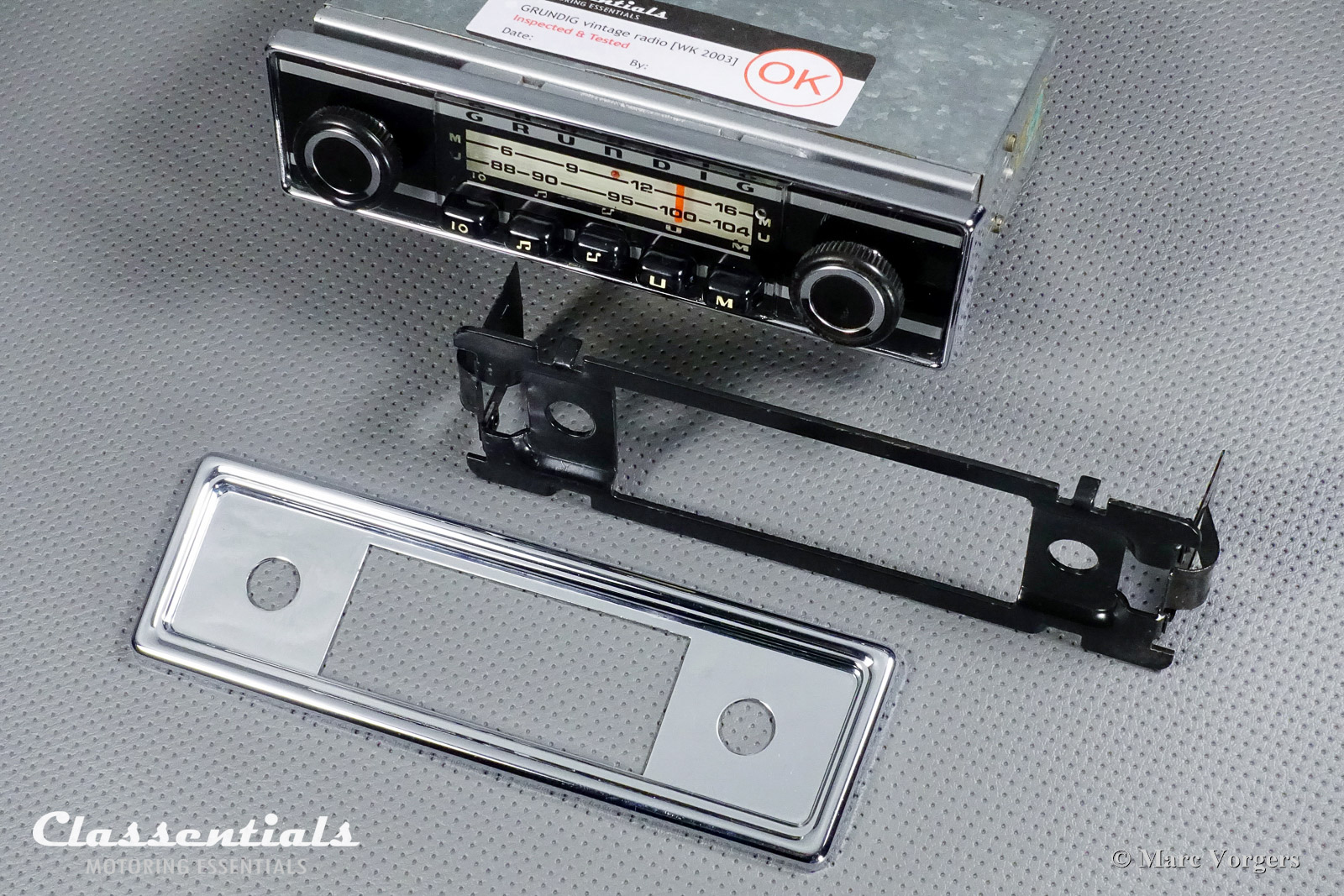

- Dimensions face-plate (width x height in mm): 184 top, 180 bottom x 48 high (Inches 7,25 top, 7 bottom x 1,8 high) NOTE: This radio will fit the old style (1960s) radio apertures. It will NOT fit the 1-DIN dashboard aperture (180 x 50 mm / 7,1 x 1,9 inch) with the currently fitted small faceplate. If needed, a larger 1-DIN size faceplate is available upon request. Dimensions OPTIONAL face-plate (additional costs €35 including special 1-DIN bracket) (width x height in mm): 194 top, 191 bottom x 60 high (Inches: 7,6 top, 7,5 bottom x 2,4 high).
- Weight (kg): 0,75
Installing: Basic car conditions before installation: Radio prepared car with dashboard openings, 12V power lead, analog telescopic antenna, standard (dashboard speaker) with wiring.
Tools needed: wrench number 14 and 8, cable shoe pliers. Handy customers experienced with working and tinkering on classic cars can install a radio by themselves. All others we strictly advise to have their vintage radio installed by an experienced mechanic / electrician / local garage. Our installation kits contain the parts and instructions needed to install a radio in a factory original prepared car. In case your dashboard aperture / mount has been changed by previous owners over the last 40 -50 years you might need, or have to make, different parts to make the radio fit properly.
*1.5 years (18 months) European / US warranty (See About Us / FAQ). In the rare case that a Grundig transistor radio stops working you send it back to us for immediate exchange (in case a comparable unit is in stock) or repair. The radio is sealed before shipping with a unique numbered security seal which cannot be tampered with. If this seal is damaged / broken the warranty will be void.
“Enjoy the Ride!”
